Canvas 7D PLC With HMI

Get a Price/Quote

Product Details:

Humidity 10-90% RH (Non-Condensing)
Protection Level IP65 Front Panel
Output Voltage 24V DC Relay/Transistor Output
Frequency 50/60 Hz
Phase Single Phase
Efficiency High Efficiency, Optimized for Industrial Use
Operating Temperature 0C to 50C
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Canvas 7D PLC With HMI Price And Quantity

Minimum Order Quantity 1 Piece

Canvas 7D PLC With HMI Product Specifications

Mounting Type Panel Mount
Operating Temperature 0C to 50C
Efficiency High Efficiency, Optimized for Industrial Use
Voltage 24V DC
Condition New
Phase Single Phase
Function Programmable Logic Controller with Integrated HMI
Main Material ABS Plastic Housing
Dimension (L*W*H) 200mm x 140mm x 38mm (Approx.)
Accessories User Manual, Mounting Kit, Power Cable
Rated Voltage 24V DC
Input Current 0.5A (Max)
Application Industrial Automation, Machine Control, Process Monitoring
Frequency 50/60 Hz
Power Mode DC Powered
Humidity 10-90% RH (Non-Condensing)
Processing Type Microcontroller-Based
Protection Level IP65 Front Panel
Output Voltage 24V DC Relay/Transistor Output
Power Consumption 10W (Typical)

Memory 16MB Flash, 128MB RAM
Weight Approx. 700g
Resolution 800 x 480 Pixels
Display Type 7" TFT LCD Touch Screen
Backlight Life >50,000 Hours
Communication Ports RS232, RS485, Ethernet, USB
Analog Inputs/Outputs 2 AI / 2 AO (Expandable)
Programming Software Canvas Designer Software Suite
Digital Inputs/Outputs 8 DI / 8 DO (Expandable)

Product Description

Get It Now - the Canvas 7D PLC with HMI combines power and versatility at a cost-effective clearance price. Equipped with a 7" polished TFT LCD touch screen delivering unrivaled 800 x 480 pixel resolution, this robust unit features multiple communication ports (RS232, RS485, Ethernet, USB) for redoubtable connectivity. Easily program with Canvas Designer Software Suite and benefit from 8 DI/8 DO and 2 AI/2 AO expandability. The IP65-rated, ABS-housed controller ensures high efficiency and durability. Ideal for industrial automation and machine control, Canvas 7D PLC offers unmatched reliability for smart operations.

Exceptional Versatility & Advanced Applications

The Canvas 7D PLC With HMI excels in industrial automation, machine control, and process monitoring, but its uses extend further. Its extra features-expandable digital and analog I/O, high-efficiency operation, and rugged IP65 protection-make it suitable for factory lines, packaging, robotics, HVAC management, and custom control panels. This redoubtable unit's ABS plastic housing and microcontroller-based processing ensure stability even in humid or demanding settings. Optimize operations and monitor critical data effortlessly with this polished automation solution.

Simple Payment & Efficient Order Fulfillment

Canvas 7D PLC with HMI is supplied across India with transparent payment terms. A nominal charge applies for samples, aiding in project evaluation prior to bulk order completion. Secure shipping ensures prompt and safe delivery, while reliable supply ability meets urgent and large-scale industrial needs. We guarantee streamlined transactions and on-time dispatch so you can get your Canvas 7D PLC delivered and installed without hassle

FAQ's of Canvas 7D PLC With HMI:

Q: How do I connect Canvas 7D PLC With HMI to other industrial equipment?

A: You can connect the Canvas 7D PLC With HMI using its RS232, RS485, Ethernet, or USB ports, ensuring compatibility with most industrial equipment for seamless integration and data exchange.

Q: What is the programming process for the Canvas 7D PLC With HMI?

A: Programming the PLC is straightforward using the Canvas Designer Software Suite, where users can configure input/output operations, monitor processes, and implement advanced control logic with ease.

Q: When is a sample available for testing before a bulk order?

A: Samples are available on request for a nominal charge, allowing customers to evaluate functionality and integration capabilities before finalizing larger orders.

Q: Where can the Canvas 7D PLC With HMI be effectively used?

A: This model thrives in environments such as industrial automation lines, process monitoring systems, machine control, packaging industries, and HVAC management due to its rugged design and expandability.

Q: What benefit does the IP65-rated front panel provide?

A: The IP65-rated front panel offers superior dust and water protection, ensuring reliable performance in harsh and demanding industrial settings.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Cancas Ocs Series' category

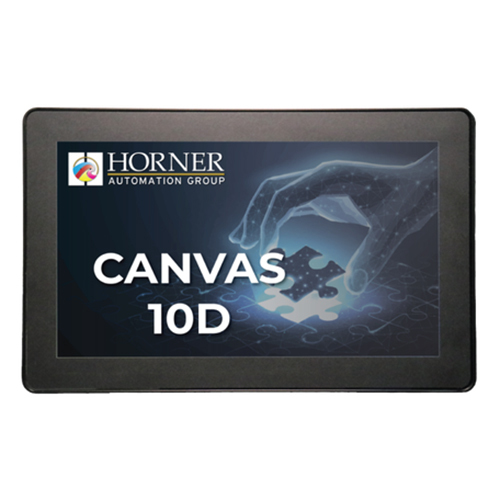

Canvas 10D PLC With HMI Minimum Order Quantity : 1 Input Current : Max 0.5A at 24V DC Rated Voltage : 24V DC Accessories : User Manual, Mounting Kit, Power Cable Main Material : ABS Plastic / Metal Frame Dimension (L*W*H) : 270 mm x 185 mm x 50 mm Function : Integrated PLC with Touch Screen HMI Phase : Single Phase Voltage : 24V DC Condition : New Mounting Type : Panel Mount Operating Temperature : 0C to 50C Efficiency : High Efficiency Industrial Grade Power Consumption : 12W (Typical) Output Voltage : 24V DC Relay / Transistor Outputs Protection Level : IP65 (Front Panel) Power Mode : Other, DC Powered Frequency : 50/60 Hz Humidity : 10% to 90% RH (NonCondensing) Processing Type : Other, Digital, Programmable Logic Control Application : Industrial Automation, Process Control, HMIPLC Solutions Battery Life : Not Applicable (No internal battery)

Send Inquiry

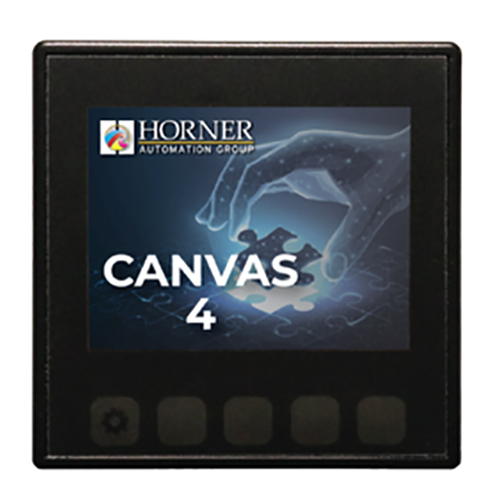

Canvas 4 PLC With HMI Minimum Order Quantity : 1 Input Current : Max 0.25A @ 24V DC Rated Voltage : 24V DC Accessories : Mounting kit, Documentation, Communication cable (option) Main Material : ABS/Polycarbonate Enclosure Dimension (L*W*H) : 96 x 96 x 40 mm Function : PLC Programming, User Interface, Data Monitoring Phase : Single Phase Input Voltage : 1224V DC Condition : New Mounting Type : Panel Mount Operating Temperature : 10C to +60C Efficiency : High optimized for industrial control applications Power Consumption : 5W Max Output Voltage : Relay/Transistor Output as per PLC configuration Protection Level : IP65 (front panel) Power Mode : Other, DC Powered Frequency : 50/60 Hz compatible Humidity : 10% to 90% RH, noncondensing Processing Type : Other, Programmable Logic Controller with Integrated HMI Application : Industrial Automation, Control Panels, Process Display Battery Life : Not Applicable (powered device)

Send Inquiry

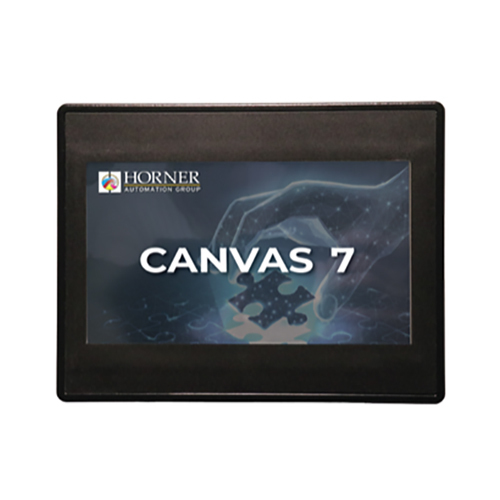

Canvas 7 PLC With HMI Minimum Order Quantity : 1 Input Current : Max. 0.5A Rated Voltage : 24V DC Accessories : Mounting brackets, user manual, power adapter Main Material : ABS Industrial Grade Plastic Dimension (L*W*H) : 200 mm x 150 mm x 40 mm Function : Programmable Logic Controller with Integrated HMI Phase : Single Phase Voltage : 24V DC Condition : New Mounting Type : Panel Mount Operating Temperature : 0C to 50C Efficiency : High (Optimized for Industrial Use) Power Consumption : Approx. 10W Output Voltage : 24V DC (Relay Outputs) Protection Level : IP65 (Front Panel) Power Mode : Other, DC Power supply Frequency : 50/60 Hz Humidity : 10% to 90% RH, NonCondensing Processing Type : Other, Digital Processing Application : Industrial Automation, Machine Control, Process Control Battery Life : Not applicable (Mains powered)

Send Inquiry

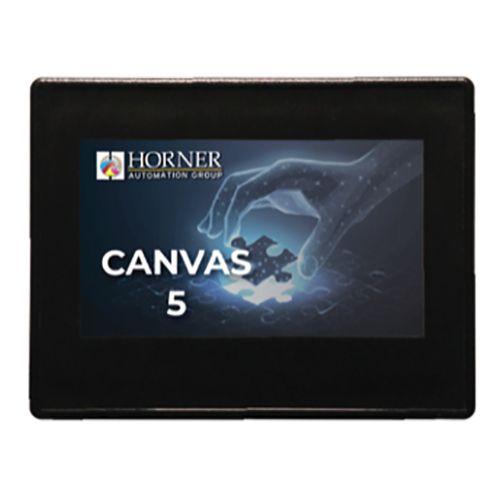

Canvas 5 PLC With HMI Minimum Order Quantity : 1 Input Current : 0.33A @ 24V DC Rated Voltage : 24V DC Accessories : User Manual, Mounting Brackets Main Material : Polycarbonate Housing Dimension (L*W*H) : 155 x 122 x 50 mm Function : PLC & HMI Integrated Control and Visualization Phase : Single Phase Voltage : 24V DC Condition : New Mounting Type : Panel Mount Operating Temperature : 0C to 50C Efficiency : High Efficiency Industrial Grade Power Consumption : Max 8W Output Voltage : 12V DC (for auxiliary ports) Protection Level : IP65 Front, IP20 Rear Power Mode : Other, External Power Supply Frequency : 50/60 Hz Humidity : 10% to 95% (noncondensing) Processing Type : Other, Digital Application : Industrial Automation, Machine Control, Process Monitoring
